4xPIR motion sensor resistant to animals upto 20kg
The MCE385 sensor is ideal for use in the garden, around the house or terrace, at the gate, passageways, corridors, basements, warehouses, garages and other places that require lighting or other devices to be turned on when motion is detected.
The sensor identifies day and night (dusk sensor), turns on and off depending on the appearance of an object in the detection field.
The detection angle of 120° and the detection distance of up to 12 meters allow for effective monitoring of a large area.
The main purpose of the sensor is the automatic control of lighting, but it is also possible to connect other electrical devices (e.g. electric heating, air conditioning, etc.), provided that the power receiver does not load the switch with a power greater than 1200 W (resistive load) or 600 W (inductive load).
Viverse application, to control the lighting of a variety of objects:
- facades of residential buildings, courtyards, entrances, gates, garden greenery
parking lots
- exterior walls of buildings and other architectural objects
- advertising signs and billboards, storefronts
- many other objects, including interiors The device can operate both at night and during the day.
Specification:
- Manufacturer: Maclean
- Model: MCE385 B
- Color: black
- Power supply: 220-240 V/AC
- Frequency: 50/60 Hz
- Power consumption: approximately 0.5 W
- Detection area: 120°
- Operating temperature: -20 to +40°C
- Permissible humidity: <93% RH
- Illumination sensor: <3-2000 LUX (adjustable)
- Time delay: min. 10 sec (+/- 3 sec), max. 15 min (+/- 2 min.)
- Installation height: 1.8 - 2.2 m
- Motion detection speed: 0.6 - 1.5 m/s
- Maximum load: 1200 W (resistive load) / 600 W (inductive load)
- Detection distance: max. 12 m
- Degree of protection: IP65
- Number of units per set: 4
- Protection against electric shock: II
Set contains:

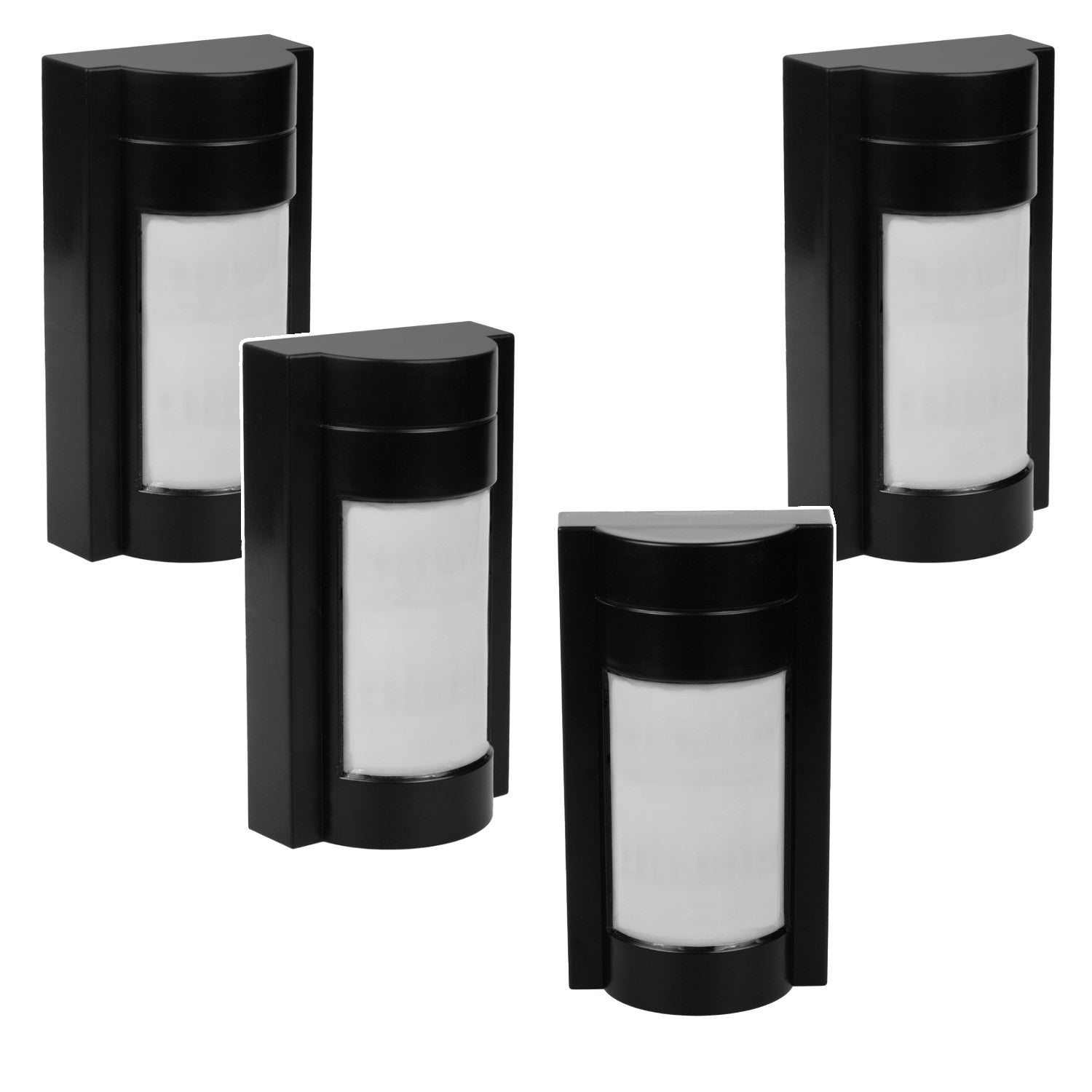

- Maclean MCE385 B PIR motion sensor - 4 pieces

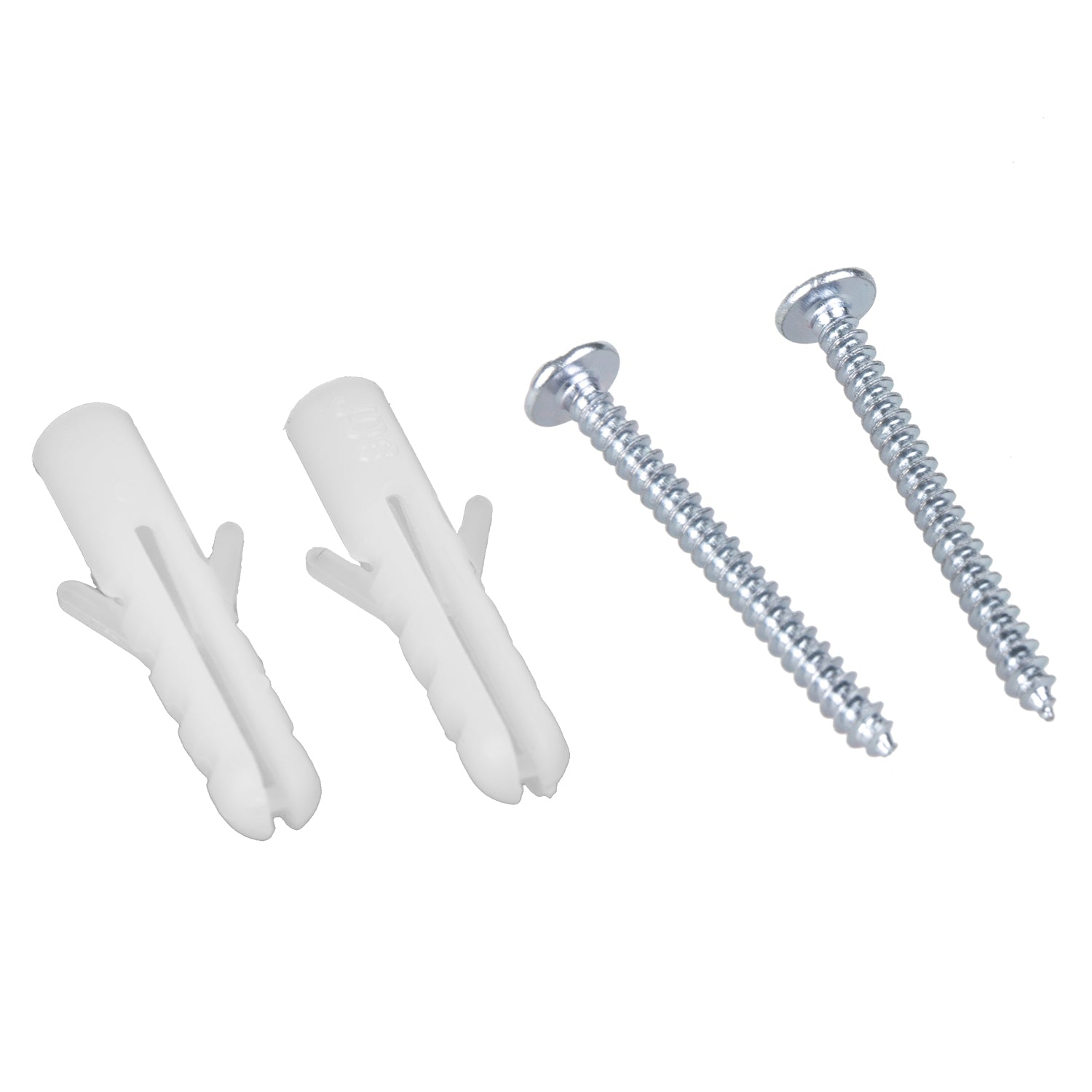

- Mounting accessories
- User manual
- Manufacturer's packaging

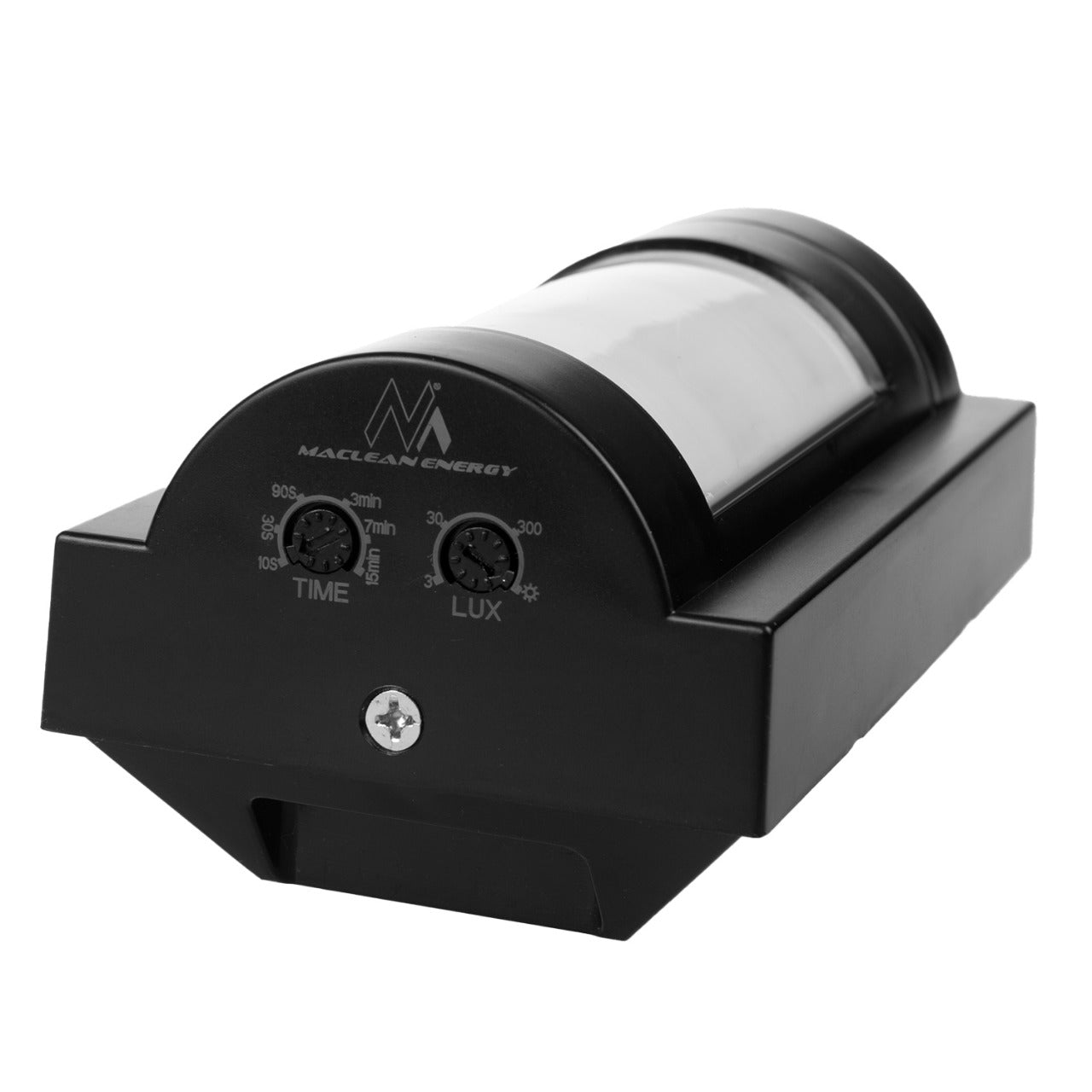

The TIME knob is used to adjust the lighting time (from about 10 sec to 15 minutes). The LUX knob is used to set the ambient light sensitivity (range from 3 to 2000 LUX). When the ambient light is insufficient and you want the device to work both during the day and night, set the knob to the day position (sun icon).
- Motion detection angle: 120°
- Adjustable PIR infrared sensor
- Maximum power: 1200 W (resistive load)
- Works with LED lighting
- Degree of protection: IP65
- Built-in light intensity sensor
- Possibility to adjust the time of illumination and the level of light intensity at which the device starts working (dusk sensor)
- Range: max. 12 m
- Do not detect the movement of small animals (up to 20 kg)
- Set includes 4 sensors.
